Metabo WPB 36-18 LTX BL 230 Cordless Angle Grinder inc Charger and 2 Batteries


Metabo WPB 36-18 LTX BL 230 Cordless Angle Grinder inc Charger and 2 Batteries

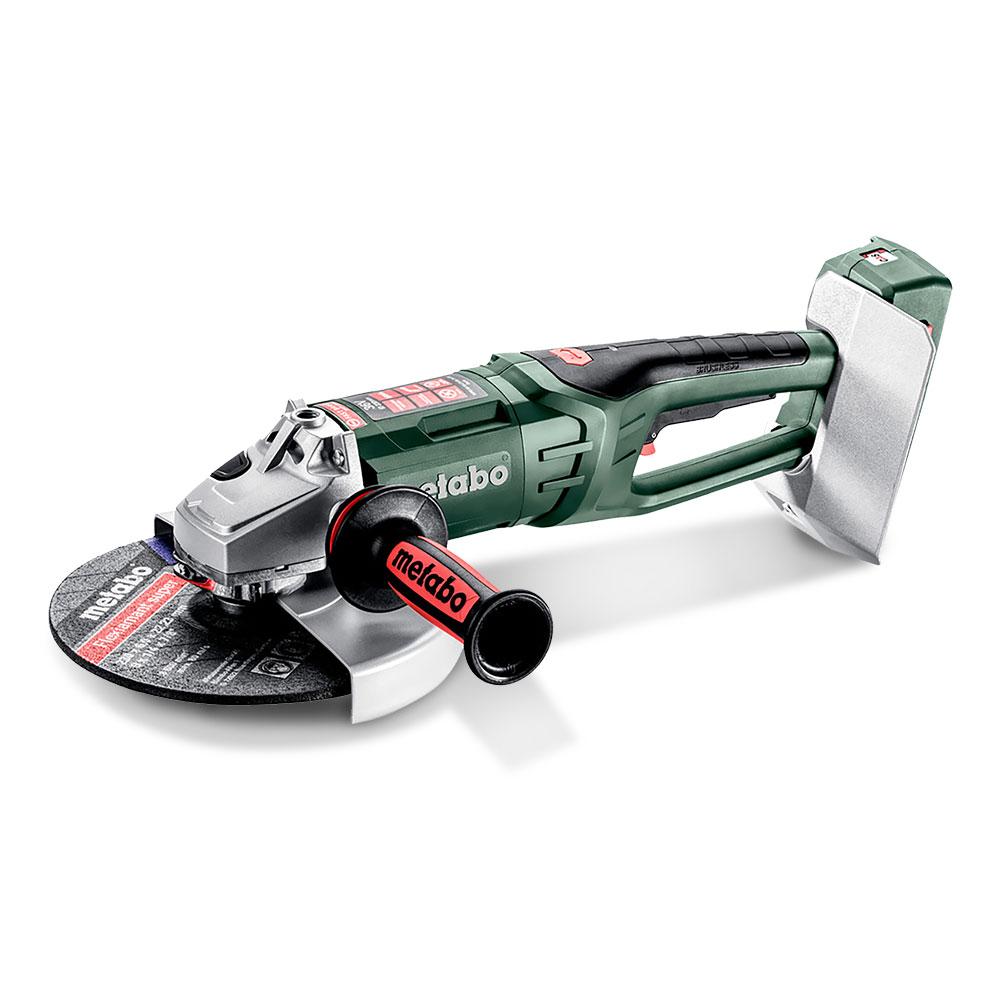

  • Metabo WPB 36-18 LTX BL SK – 36V (2x18V) 230mm Cordless Brushless Angle Grinder Skin 613102840
  • 2 x Metabo 18V 7.0Ah LiHD Battery
  • Metabo ASC30-36V – 14.4V/18V/36V Air Cooled Charger 627047000
  • Tool Case


  • World's first large angle grinder (Ø 230 mm) with battery pack operation for powerful cutting and roughing independent from the mains power
  • 100% compatibility with the 18 Volt class: powerful 36 Volt operation with two 18 Volt battery packs from Metabo
  • Widest range of application thanks to extremely large cutting depth of 77 mm
  • Unique encapsulated Metabo brushless motor with optimum protection from dust provides quick work progress and the highest efficiency
  • Deadman's switch for high user safety
  • Fast brake system for highest user safety stops the disc within a matter of seconds after switching off
  • Rotating main handle: high safety and better handling when cutting
  • Metabo VibraTech (MVT) side handle for vibration damping to protect the user's health
  • Side handle can be mounted in three positions
  • Electronic safety shutdown: reduces kickback if the disc stops unexpectedly - for high user safety
  • Overload protection, soft start and restart protection
  • LiHD battery pack for ultimate performance, extremely long runtime and service life
  • Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack



  • Battery pack voltage: 18 V
  • Grinding wheel Ø: 230 mm / 9 "
  • No-load speed: 6600 rpm
  • Spindle thread: M 14
  • Weight (including battery pack): 6.5 kg


  • Surface grinding8.2 m/s²
  • Uncertainty of measurement K1.5 m/s²

Noise emission

  • Sound pressure level88 dB(A)
  • Sound power level (LwA)99 dB(A)
  • Uncertainty of measurement K3 dB(A)


  • Guard
  • Inner support flange
  • Nut with two holes
  • Metabo VibraTech (MVT) side handle
  • Flat-pin spanners
  • Plastic carry case
  • Without battery pack, without charger

Metabo 321000890 – 18V 7.0Ah LiHD Battery


  • LiHD battery packs for ultimate performance and extremely long application with minimal temperature generation
  • Ultra M technology: Intelligent battery management for long-lasting battery packs with a 3 year guarantee
  • Patented "AIR COOLED" charging technology
  • Permanent Electronic Single Cell Protection (ESCP) when charging, for particularly long life.
  • Processor-controlled charge and discharge management
  • Capacity display with almost no self-discharge
  • No memory effect
  • Capacity display with almost no self-discharge


  • Battery pack voltage: 18V
  • Capacity of battery pack: 7.0Ah
  • Air cooled: 1

Metabo ASC 30-36V -18V Charger , 14.4-36V(627047000)


  • Monitored charging with microcontroller
  • Battery diagnosis
  • Charge time approximately 30 minutes at 1.5 Ah
  • For charging all Li-Power Compact, Li-Power Plus, Li-Power Extreme battery packs
  • Monitored charging with a microcontroller: the battery pack is charged with 2.5 amperes with constant monitoring of voltage flow, temperature flow and maximum temperature. The charger ends the charging process immediately after full charging. Thus, there is no overcharging and the life of the battery pack increases.
  • Charger switches to compensation charge: to conserve the capacity, the battery pack is charged for 1 second every 45 seconds with 2.5 amperes.
  • "AIR COOLED" function: the patented principle is based on air-cooling the battery pack during the charging process. The battery packs are gently cooled down to the required charging temperature, and then during the charging process are constantly maintained at an optimum temperature. With this principle, a higher tool life of the battery packs and up to 30% shorter total charging time can be achieved.


  • Mains voltage: 230 - 240 V
  • Mains frequency: 50 - 60 Hz
  • Suitable for Metabo 14.4V, 18V and 36V cordless tools


Additional information

Weight 14 kg
Dimensions 70 × 37 × 18 cm
