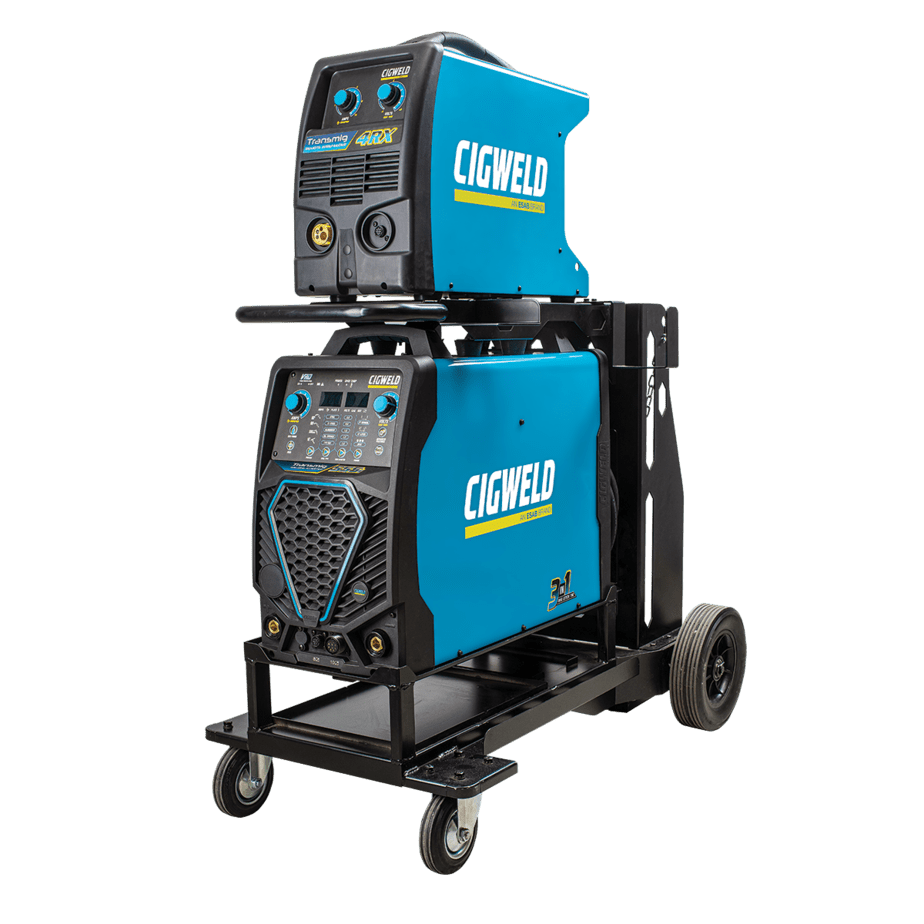

TRANSMIG 555i REMOTE PLANT

Description

Meet the new CIGWELD TRANSMIG 555i Multi Process Heavy Duty Welding package!

Boasting a powerful 555 amp inverter block, this 3-phase beast packs serious arc punch for heavy metal applications! Loaded with advanced features across MIG, STICK, TIG and GOUGING processes, the TRANSMIG 555i has a rated duty cycle of 555A @ 40% and 500A @ 60%.

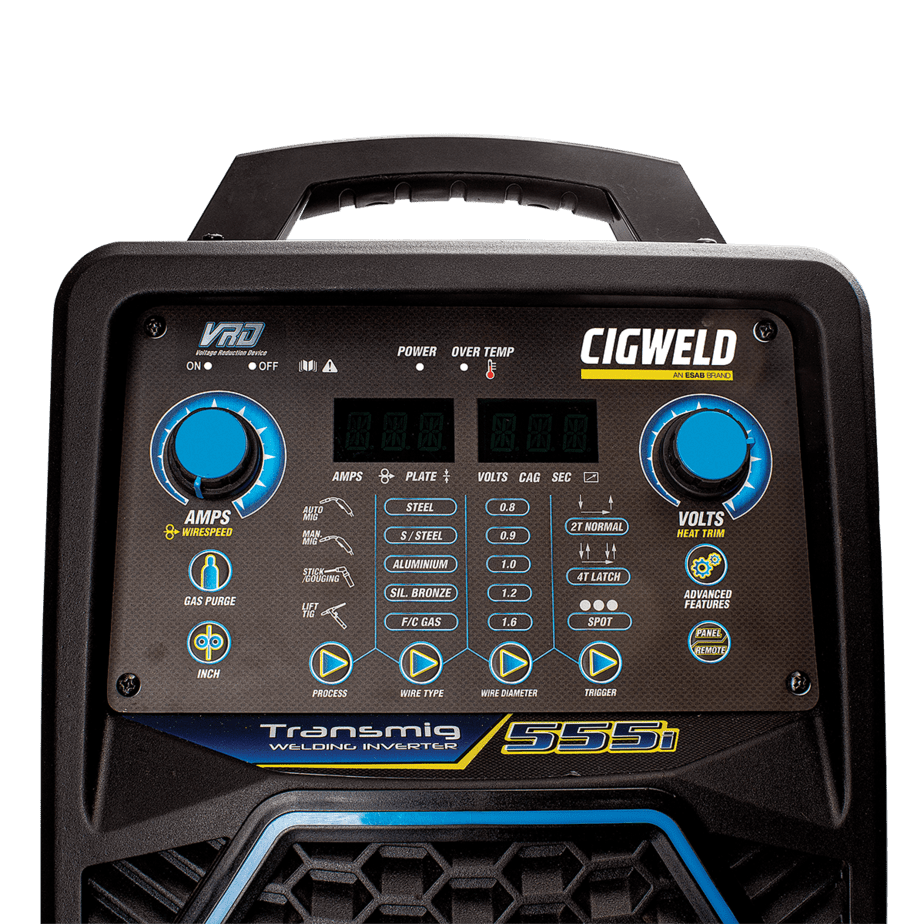

Oh, and did we mention it’s incredibly energy efficient? The 555i complies with the European Union ECO-Power regulations, so not only do you get more output amperage for your buck, but you pay less to run this 555i machine compared to a lot of other older machines. Power-Up and Pay-LessTM CIGWELD’s AUTO-SET  advanced feature helps you get the best out of your welding performance. With pre-programmed synergic lines, by simply selecting the material type, consumable diameter and plate thickness will give you the right parameters to get your welds done right!

The Transmig 555i has been designed to be durable and rugged to suit the most demanding of environments across heavy fabrication, mining, oil and gas, civil construction, ship building and defence, structural steel set-ups and repair and maintenance.

Please contact us for pricing, configuration and transport options - (03) 9794 6287

Remote Plant SKU
W1400555

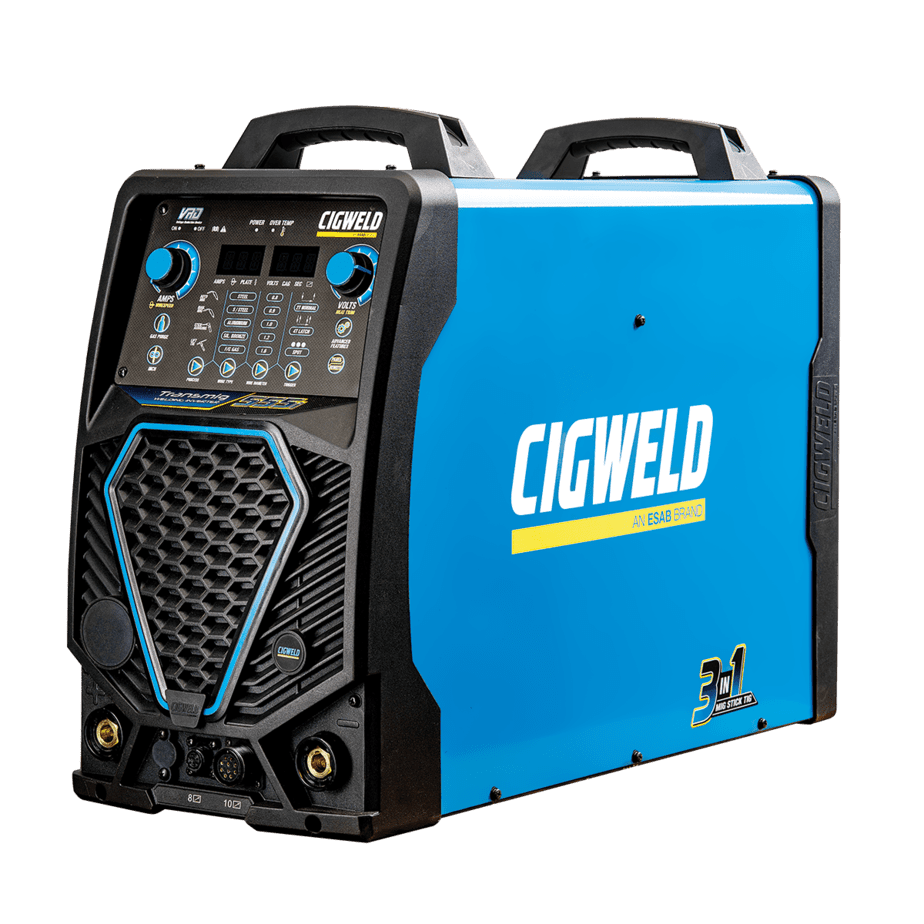

Power Source SKU
W1401555

Wire Feeder SKU
W3000410

Power Source Dimensions
L700 mm x W287 mm x H517 mm

Wirefeeder Plant Dimensions
H453mm x W 238mm x D 553mm

Power Source Weight
49kg

Wirefeeder Plant Mass
18 kg

Cooling
Fan Cooled

Welder Type
Multi Process Inverter Power Source

Australian Standard
AS 60974.1-2020 / IEC60974-1 / EN60974-10

Number of Phases
3

Nominal Supply Voltage
415 VAC ± 15%

Nominal Supply Frequency
50 / 60Hz

Output Terminal Type
DinseTM Style 50

Protection Class
IP23S

Welding Environment Classification
Suitable for Welding in Category C Environments; Suitable for Indoor and Outdoor Welding

Open Circuit Voltage (VRD On)
<35 V DC

Open Circuit Voltage (VRD Off)
83 V DC

Welding Current Range (MIG Mode)
30 – 555 A

Welding Current Range (GOUGING / STICK Mode)
10 – 555 A

Welding Current Range (TIG Mode)
10 – 555 A

Supply Lead
4 mm²

Effective Input Current (I1eff)
27 Amps

Maximum Input Current (I1max)
41 Amps

Efficiency
92%

Idle state power
< 30W

Minimum Three Phase Generator Recommendation
35 kVA (at 0.8 Power Factor)

MIG (GMAW) Welding Output, 40ºC, 10 min
555 A @ 40%, 41.8 V
500 A @ 60%, 39 V
400 A @ 100%, 34 V

STICK (MMAW) / GOUGING Welding Output, 40ºC, 10 min.
555 A @ 40%, 42.2 V
500 A @ 60%, 40 V
400 A @ 100%, 36 V

TIG (GTAW) Welding Output, 40ºC, 10 min.
555 A @ 40%, 32.2 V
500 A @ 60%, 30 V
400 A @ 100%, 26 V
