G5-01 TW
Description

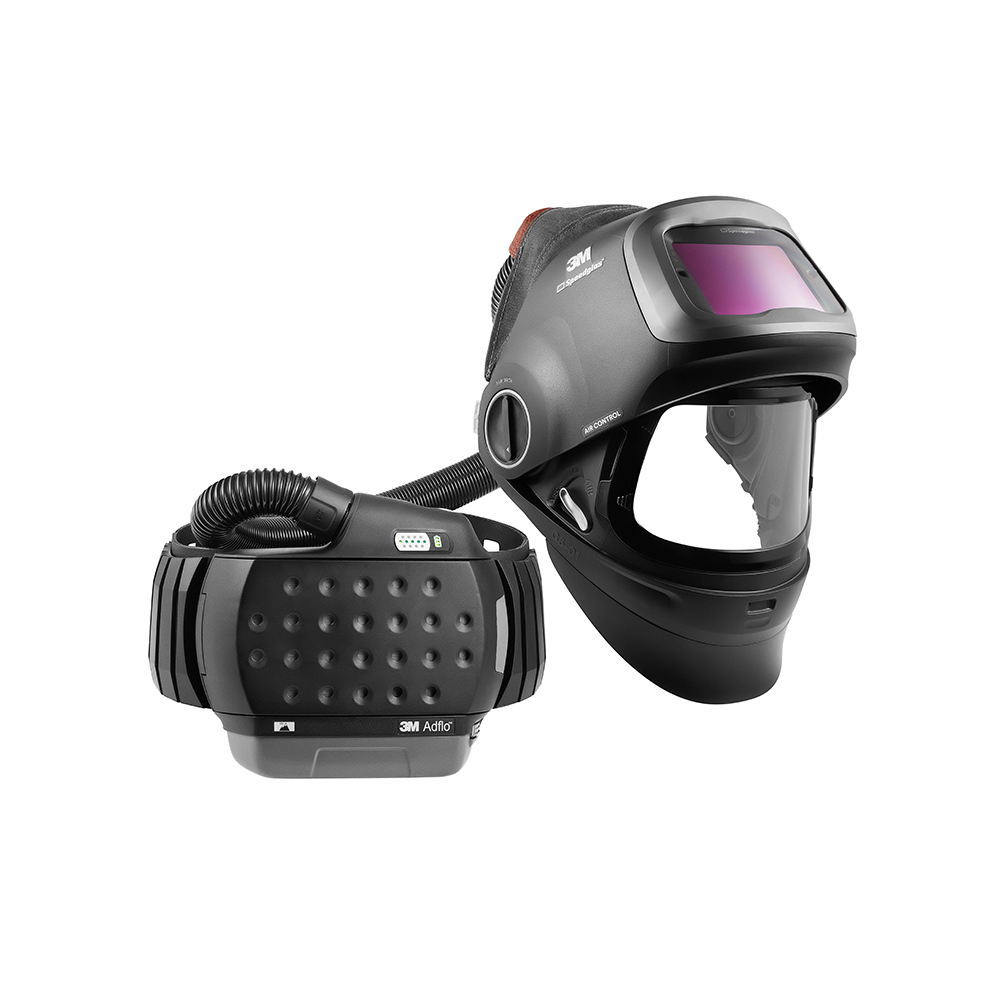

The all-new 3M Speedglas Welding Helmet G5-01 TW with Heavy-Duty Adflo PAPR is an upgraded version of the hugely popular 3M Speedglas 9100 FX Air, with a suite of new technology.
It offers a larger viewing area with superior optics as well as a 15% larger clear grinding visor, climate control, 50% longer Adflo battery runtime, Bluetooth lens technology, extra head and neck protection and an optional task light!
- Flip-up clear grinding visor (170 x 104mm), 15% larger than the 9100 FX Air
- A massive 73 x 109mm viewing area
- True-View optics for improved colour and contrast
- Climate Control enables helmet airflow adjustments for added comfort
- Adflo PAPR has a 50% longer battery runtime compared with the standard 9100 FX Air (12 hours)
- Removable welding visor reduces weight by 35%
- New Tack Welding Mode for a smoother dark-light transition
- Bluetooth connectivity for memory modes
- Configurable head and neck coverage
- Shades 3, 5, 8-13
- Made in Sweden with Auto On
- Highest possible optical classification (1/1/1)
- Required Minimum Protection Factor (RMPF) of 50
- Revolutionary powered airflow delivery results in improved respiratory protection and comfort (AS/NZS1716)
- Two adjustable air flow settings (170/200 litres per minute)
- Compliant with all relevant Australian & New Zealand standards.
| Relevant Welding Helmet Standards | Eye Protection - AS/NZS1338.1, Face Protection - AS/NZS1337.1 (High Impact), Respiratory Protection - AS/NZS1716 |
|---|---|
| Speedglas TrueView Welding Lens | Yes |
| Variable Colour Technology | No |
| Stick Welding | Yes |
| MIG Welding | Yes |
| TIG Welding | Yes (industry leading detection down to 1 Amp) |
| Grinding Feature | Large Clear Grinding Visor 170 x 104mm (Flip-Up) |
| Memory Mode (Set-and-Forget) | Yes - 4 |
| SideWindow Peripheral Vision | No |
| Hidden Arc Mode | Yes |
| Welding Lens Viewing area | 73 x 109mm |
| Auto Darkening Lens Classification | 1/1/1 & TrueView |
| Variable Dark Shades | Shade 5, 8, 9-13 |
| Light State | TrueView Shade 3 |
| UV Protection | Shade 13 (permanent) |
| Switching time, light-dark | 0.1 ms (+23 C) |
| Delay (switching time, dark-light) | 50-1300 ms |
| Blue-Tooth Enabled | Yes |
| Optional Task Light | Yes |
| Comfort Exhaust Vents | No (positive pressure seal for powered air) |
| Head Harness | New G5-01 Head Harness |
| Safety Helmet | No |
| Required minimum protection factor | 50 |
| Air flow Level | 170 & 200 l/min |
| Adjustable Air Control | Yes |
| Adflo Battery Run Time | 12 hours |
| Adflo Battery Charge Time | 1 hour rapid charge (80% capacity), 5.5 hours complete |
| Welding Helmet Model | Speedglas G5-01 |
Additional information
| Weight | 5.22 kg |
|---|---|
| Dimensions | 48 × 30 × 29 cm |
